HIKMICRO Habrok Pro HQ50L Multi-Spectrum Thermal Binocular - 640px 50mm with 4K Optical Camera LRF and Harness
- Dual imaging system with 640x512 thermal detector and 4K UHD optical camera for superior clarity in all environments
- Ultra-sensitive NETD <15mK sensor ensures precise detail recognition, even in poor weather or total darkness
- Advanced Image Pro 3.0 algorithm delivers highlighted targets with balanced detail for accurate identification
- Integrated Class 1 laser rangefinder with 1000m maximum range and ±1m accuracy for precise distance measurement
- Long-lasting power with up to 10.5 hours runtime from replaceable Li-ion batteries, plus Type-C external power support
- Rugged and ergonomic design under 1kg with magnesium alloy housing, weather-sealed to IP67 standard
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
Please note: Due to distribution rights and agreements we can only sell HIKMICRO products to residents of the UK.
The HIKMICRO Habrok Pro HQ50L Multi-Spectrum Thermal Binocular combines cutting-edge thermal imaging with a 4K UHD optical camera to deliver unmatched clarity in any environment. Featuring a 640x512 thermal detector with a 50mm lens, alongside a 4K CMOS optical module with a 60mm lens, the HQ50L provides outstanding image quality whether scanning dense forests or open fields. Its ultra-sensitive <15mK NETD sensor ensures precise detail recognition, even in fog, rain, or total darkness, while the innovative Image Pro 3.0 algorithm enhances targets and balances details for reliable decision-making. Built into a rugged magnesium alloy housing and weighing under 1kg, the HQ50L is both durable and comfortable to carry. With up to 10.5 hours of continuous operation, an integrated laser rangefinder, GPS, and smart features, the Habrok Pro HQ50L is the ultimate tool for serious observation and exploration.

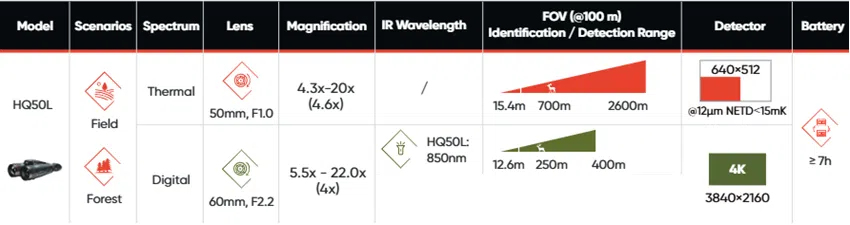

- Image Sensor VOx Uncooled Focal Plane Arrays
- Max. Resolution 640x512
- Frame Rate 50Hz
- Pixel Interval 12µm
- Response Waveband 8µm – 14µm
- NETD <15mK (@25°C, F#=1.0)
- Lens (Focal Length) 50mm, F1.0
- Detection Range 2600m
- Focus Mode Focus Ring
- Field of View (H × V) 8.8° × 5.3° / 15.4m × 9.3m @100m
- Min. Focusing Distance 5m
- Magnification 4.3x – 20.0x (4.6x continuous zoom)
- Image Sensor (Optical Module) 1/1.8'' Progressive Scan CMOS
- Max. Resolution (Optical Module) 3840x2160 (4K UHD)
- Field of View (Optical Module) 7.3° × 4.1° / 12.6m × 7.2m @100m
- Focal Length (Optical Module) 60mm, F2.2
- Min. Working Distance (Optical Module) 3m
- IR Illuminator Wavelength 850nm
- Night Viewing Range 400m
- Magnification (Optical Module) 5.5x – 22.0x (4x zoom)
- Focus Mode (Optical Module) Focus Ring
- Smart IR Yes
- Replaceable IR Illuminator Yes
- Display 0.49 inch OLED, 1920x1080
- Contrast Adjustment Yes
- Brightness Adjustment Yes
- Palettes Thermal – Black Hot, White Hot, Red Hot, Fusion; Optical – Day, Night, Auto
- FFC (Flat Field Correction) Auto, Manual, External
- Exit Pupil 8mm
- Eye Relief 15mm
- Dioptre Adjustment -5D to +3D
- Tone Adjustment Cold/Warm
- Zoom Pro Yes
- Image Pro 2.0 / 3.0 Yes
- Protection Level IP67
- Weight 975g (with battery pack)
- Dimensions 142.9mm × 79.7mm × 230.5mm (5.6" × 3.1" × 9.1")
- Working Temperature -30°C to +55°C
- Interpupillary Adjustment Range 60mm – 74mm
- Mounting Adapter 1/4"-20 UNC
- Record Video Yes
- Capture Snapshot Yes
- Hotspot (Wi-Fi) Yes
- GPS Yes
- Digital Magnetic Compass Yes
- Standby Mode Yes
- Storage Built-in EMMC (64GB)
- Picture-in-Picture (PIP) Yes
- Hot Track Yes
- Audio Recording Yes
- Local Album Yes
- Battery Type Replaceable and Rechargeable Li-ion Battery Pack
- Battery Operating Time 10.5h (25°C, Hotspot Off, LRF and Zoom Pro On)
- Type-C Power Supply 5V/9V DC, 3A (supports external power supply and direct charging)
- Laser Rangefinder Safety Class Class 1
- Laser Wavelength 905nm
- Max. Measuring Range 1000m
- Measurement Accuracy ±1m
- Min. Measuring Range 10m
- Exceptional thermal performance: Equipped with a 640x512 VOx uncooled detector (12µm) and NETD <15mK, the HQ50L captures the smallest temperature differences for outstanding thermal imaging performance.
- 4K UHD optical module: A 3840x2160 CMOS optical camera with a 60mm lens delivers crisp daytime visuals, seamlessly complementing the thermal channel. Optical modes include Day, Night, and Auto.
- Image Pro 3.0 processing: Proprietary HIKMICRO imaging technology enhances contrast, balances brightness, and highlights targets, ensuring a sharper, more accurate view for hunters and observers.
- Integrated laser rangefinder (LRF): A Class 1 eye-safe laser provides accurate distance measurement up to 1000m, essential for ranging targets with precision.
- Smart functionality: Features include GPS, digital magnetic compass, picture-in-picture (PIP), hotspot sharing, built-in video and audio recording, local album, hot tracking, and smart IR illuminator with replaceable module.
- Extended operation: Replaceable, rechargeable high-capacity Li-ion batteries deliver up to 10.5 hours of operation, even with LRF and Zoom Pro enabled. A smart standby function further extends usage time.
- Comfortable and robust: With an ergonomic design, interpupillary adjustment, and a weight of just 975g (including battery), the binoculars are designed for long sessions. The magnesium alloy housing provides superior durability and an IP67 rating for all-weather use.
- HIKMICRO Habrok Pro HQ50L Thermal Binocular - 640px 50mm with 4K Optical Camera and LRF
- Neck strap
- Type C USB cable
- Tripod adaptor
- 2x battery
- Quick start guide
- Lint-free cloth
- Battery charger
- Binocular harness
What are the main differences between the HIKMICRO Habrok Pro HQ50L and HX60L models?
The HQ50L features a 640x512 thermal sensor with a 50mm focal length, offering a detection range of up to 2600 metres. In contrast, the HX60L has a higher resolution 1280x1024 thermal sensor with a 60mm focal length, providing a greater detection range of up to 3100 metres.
What applications are the Habrok Pro binoculars suitable for?
The Habrok Pro models are versatile and can be used for various applications, including hunting, birdwatching, search and rescue operations, and marine activities. Their advanced thermal imaging and optical capabilities make them effective in diverse environments.
How does the thermal sensitivity of the Habrok Pro models compare?
The HQ50L has a thermal sensitivity of less than 15mK, allowing it to detect subtle temperature differences effectively. The HX60L, while slightly lower at <18mK, still provides excellent performance in challenging conditions.
What is the battery life of the Habrok Pro binoculars?
Both the HQ50L and HX60L models have a battery life of over 7 hours of continuous operation, and they feature replaceable battery packs for extended use in the field.
Are the Habrok Pro binoculars lightweight and easy to handle?
Yes, the HQ50L weighs 975g and the HX60L weighs 1050g. Both models are designed with a compact and ergonomic form factor, making them comfortable to handle during extended use.
Do the Habrok Pro models come with additional features for improved functionality?
Yes, both models include a built-in 1000m laser rangefinder for accurate distance measurements, an 850nm IR illuminator for enhanced night vision, and a 4K optical camera for high-resolution imagery during the day and night.
How do I choose between the HQ50L and HX60L for my needs?
If you require a longer detection range and higher resolution, the HX60L is ideal. For general use at a slightly shorter range, the HQ50L provides excellent thermal imaging capabilities at a lighter weight.
